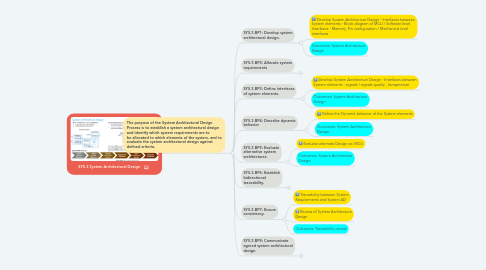

1. The purpose of the System Architectural Design Process is to establish a system architectural design and identify which system requirements are to be allocated to which elements of the system, and to evaluate the system architectural design against defined criteria.
1.1. SYS.3.BP1: Develop system architectural design.
1.1.1. Develop System Architecture Design - Interfaces between System elements - Block diagram of MCU / Software level Interfaces - Memory, Pin configuration / Mechanical level interfaces
1.1.2. Outcomes: System Architecture Design
1.2. SYS.3.BP2: Allocate system requirements
1.2.1. Define a unique naming convention for each of the System elements identified in AD and map it to the respective System Requirements. This can also be done by Traceability
1.2.2. Outcomes: System Architecture Design
1.3. SYS.3.BP3: Define interfaces of system elements.
1.3.1. Develop System Architecture Design - Interfaces between System elements - signals / signals quality , temperature
1.3.2. Outcomes: System Architecture Design
1.4. SYS.3.BP4: Describe dynamic behavior
1.4.1. Define the Dynamic behavior of the System elements
1.4.2. Outcomes: System Architecture Design
1.5. SYS.3.BP5: Evaluate alternative system architectures.
1.5.1. Evaluate alternate Design ex: MCU
1.5.2. Outcomes: System Architecture Design
1.6. SYS.3.BP6: Establish bidirectional traceability.
1.6.1. Establish traceability between System Requirements and System AD.
1.6.2. Outcomes: Software Architecture Design, Review record
1.7. SYS.3.BP7: Ensure consistency.
1.7.1. Traceability between System Requirements and System AD
1.7.2. Review of System Architecture Design
1.7.3. Outcomes: Traceability record
1.8. SYS.3.BP8: Communicate agreed system architectural design.
1.8.1. Communicate the SysAD to all stakeholders
1.8.2. Outcomes: Communication record
